M411 Aluminium Security Shutter
The M411 provides security, insulation and sound proofing to domestic applications up to 3.4m wide or 8m². The compact insulated aluminium profile enables the shutter to roll very tightly into a box which is typically between 150mm and 205mm high.

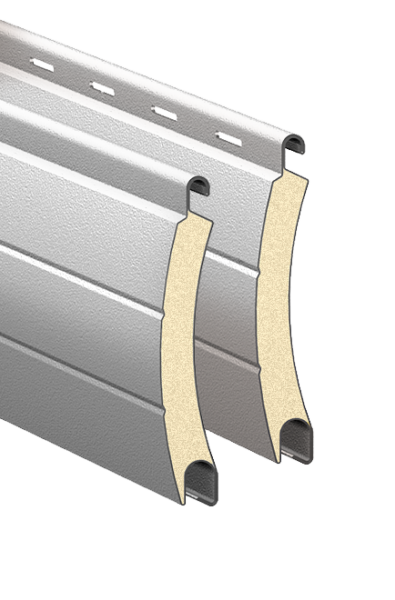

Each 42mm slat is made from double skinned aluminium with a polyurethane insulated core, and is available vented with light slots or unvented.
The M411 is typically electrically operated via a hard wired switch or remote control with appropriate safety features. Manual operation is available as required.
White, anthracite and black are standard but other colours are available on request (subject to extended lead times & minimum quantities).
Additional details
Low to medium security domestic sites up to 3.4m wide or 8m². In addition to its security function, the M411 shutter provides insulation in conjunction with a window or door system. Vented light slots are optional and can assist as a window shading system with airflow.
Aluminium double skinned polyester powder-coated slat with polyurethane foam insulating core. Vented and unvented options.
Manufactured from roll formed aluminium with a stove-enamelled finish in 2 sections with a 45° chamfered lid. End caps are pressure-moulded aluminium alloy. Circular 165mm or 205mm housing is available to enhance aesthetics (surcharge applies).
| Guide Height (mm) | Plate Size (mm) |
|---|---|
| 1050 | 150 |
| 1435 | 165 |
| 1720 | 180 |
| 2295 | 205 |
| 3550 | 250 |
*These sizes apply to standard shutter roll methods only. Reverse rolled curtains will require larger boxes than those shown. Plate sizes shown as a guide only and may increase dependent on shutter width.
Extruded 53mm or 65mm deep aluminium guide channels and bottom slat with brush and rubber weather seals. Circular guide caps are available to enhance aesthetics (surcharge applies).
Electric: Somfy tubular motor as standard supplied with a safety brake as required to comply with legislation.
Manual override facility & crank handle as required (surcharge applies).
All motors have numerous control option variants. Rocker switch supplied as standard with options for key switch, remote, group or mobile phone activation.
Manual Cord Belt: A swivel winder coils the belt within a compact box.
Manual Spring & Lock: A counter-balanced spring assembly with a key-lock bottom slat & handles.
